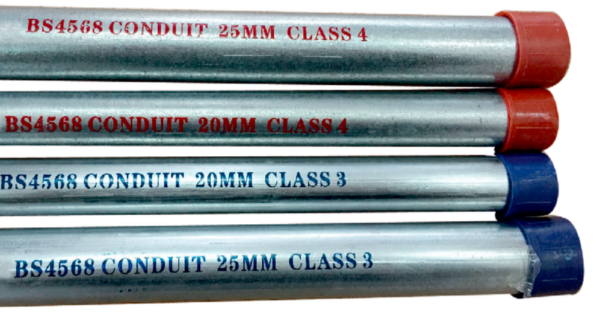

Nitra Technology will provide GI Conduits, delivering innovative solutions designed to enhance your business with cutting-edge technology. Experience the future with our smart, reliable, and customer-focused products tailored to your needs
| Class of Surface Protection | Nominal Size | Outside Diameter | Nominal Thickness | Length w/o Coupling | No. of Lengths Per Bundle | No. of Bundles Per Lift | Length Per Bundle | |
|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||
| CLASS 3 | 20 mm | 19.7 mm | 20.0 mm | 1.6±0.15mm | 3.75 metres | 10 | 20 | 200 |
| 25 mm | 24.6 mm | 25.0 mm | 1.6±0.15mm | 3.75 metres | 10 | 20 | 200 | |
| 32 mm | 31.6 mm | 32.0 mm | 1.6±0.15mm | 3.75 metres | 5 | 20 | 100 | |
| 38 mm | 37.6 mm | 38.0 mm | 1.8±0.15mm | 3.75 metres | 5 | 10 | 50 | |
| 50 mm | 49.6 mm | 50.0 mm | 1.8±0.15mm | 3.75 metres | 5 | 10 | 50 | |
| CLASS 4 | 20 mm | 19.7 mm | 20.0 mm | 1.6±0.15mm | 3.75 metres | 10 | 20 | 200 |
| 25 mm | 24.6 mm | 25.0 mm | 1.6±0.15mm | 3.75 metres | 10 | 20 | 200 | |
| 32 mm | 31.6 mm | 32.0 mm | 1.6±0.15mm | 3.75 metres | 5 | 20 | 50 | |
